Dummy Load
0-40GHz Coaxial Fixed Dummy Load Termination，Power handling from 0.5 to 2000watts, attenuation range 0 to 60dB, connector SMA N 2 92mm or chip, flange are avaliable. Contact us with your requirement.
P/N | Freq. | Power | VSWR | Connector | Size (mm) |
ZCT-2RS | DC-26.5 | 2 | 1.15~1.30 | SMA | Φ9x20 |
ZCT-5RS | DC-26.5 | 5 | 1.15~1.35 | SMA | Φ19x9 |
ZCT-5RN | DC-18 | 5 | 1.15~1.40 | N | Φ20x30 |
ZCT-10RS | DC-18 | 10 | 1.15~1.40 | SMA | Φ15.8x28 |
ZCT-10RN | DC-18 | 10 | 1.15~1.40 | N | Φ30x49.5 |
ZCT-30RS | DC-18 | 30 | 1.15~1.40 | SMA | Φ38x70 |
ZCT-30RN | DC-18 | 30 | 1.15~1.40 | N | Φ38x70 |
ZCT-50RS | DC-18 | 50 | 1.15~1.45 | SMA | Φ64x70 |
ZCT-50RN | DC-18 | 50 | 1.15~1.45 | N | Φ64x70 |

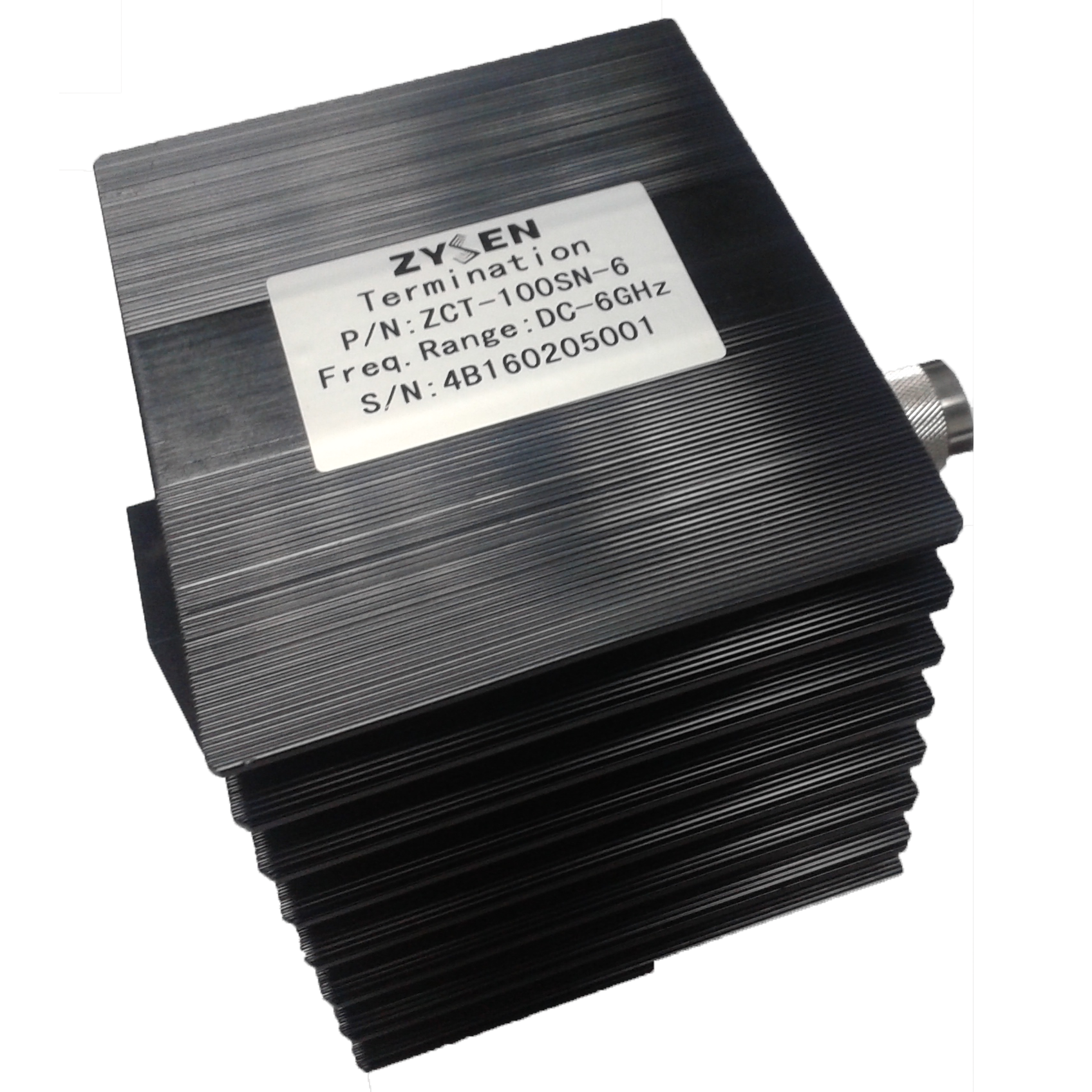

ZCT-100SN | DC-18 | 100 | 1.15~1.45 | N | 101x120x50 |
ZCT-200SN | DC-18 | 200 | 1.15~1.45 | N | 203x120x110 |
ZCT-300SN | DC-18 | 300 | 1.15~1.45 | N | 305x120x110 |
ZCT-500SN | DC-18 | 1.20~1.45 | N | 509x120x110 |
