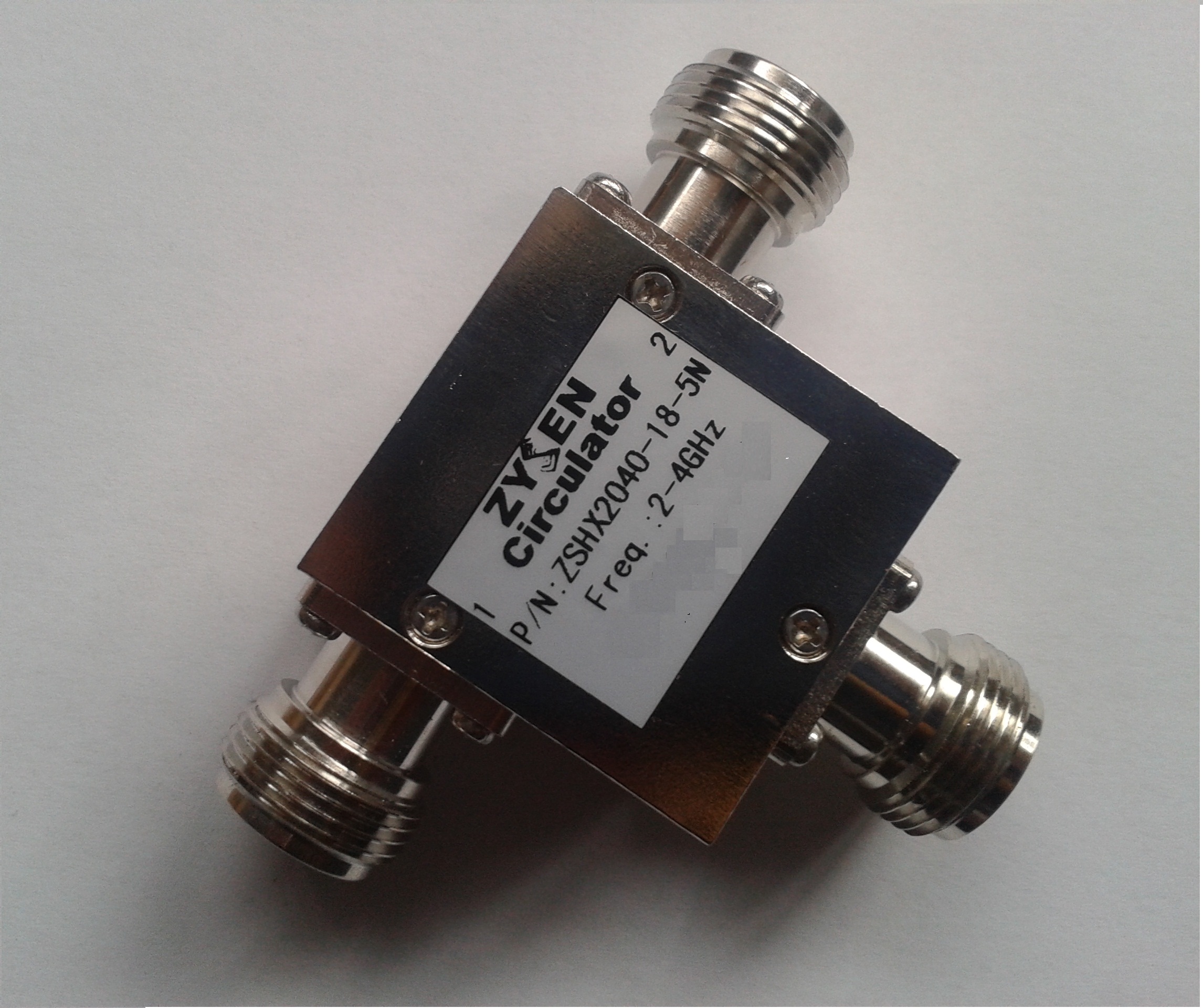

Ferrite Circulator

Caxial Circulator, Connector SMA, N, BNC, 2 92mm or Drop-in are avaliable. Customized frequency and optimized specifications available. Contact us with your requirement.

P/N

Freq. Range
  (MHz)

Insertion Loss
  (dB)
  max

Isolation
  (dB)
  min

VSWR
  max

Average Power
  (W)

Connector

ZSHX56-86-18D

56-86

1.2

18

1.30

100

Tab

ZSHX60-70-20N

60-70

1.0

20

1.25

50

N

ZSHX72-76-20DP300

72-76

0.8

20

1.25

300

Tab

ZSHX125-131-23N

125-131

0.5

23

1.20

50

N

ZSHX300-400-20D

300-400

0.5

20

1.25

10

Tab

ZSHX600-800-20S

600-800

0.5

20

1.25

50

SMA

ZSHX1700-2700-20N

1700-2700

0.5

20

1.25

200

N

ZSHX2000-4000-18S

2000-4000

0.6

18

1.35

10

SMA

ZSHX4000-8000-18S

4000-8000

0.6

18

1.35

5

SMA

ZSHX5872-20D

5800-7200

0.4

20

1.25

10

Tab

ZSHX80120-20D

8000-12000

0.6

18

1.30

10

Tab

ZSHX95117-20D

9500-11700

0.4

20

1.25

20

Tab

ZSHX100150-18D

10000-15000

0.6

18

1.35

20

Tab

ZSHX120180-18D

12000-18000

0.6

18

1.30

20

Tab

ZSHX177212-18S

17700-21200

0.7

18

1.30

2

SMA
