Ferrite Isolator

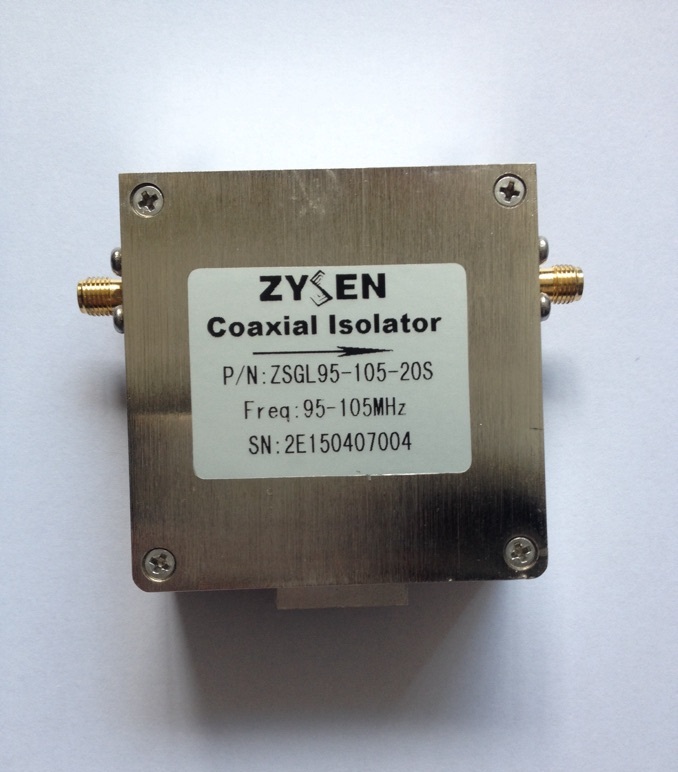

Coaxial Isolator, Connector SMA, N, BNC, 2 92mm or Drop-in are avaliable. Customized frequency and optimized specifications available. Contact us with your requirement.

P/N

Freq. Range
  (MHz)

I. L.
  (dB)
  max

Isolation
  (dB)
  min

VSWR
  max

Forward Power
  (W CW)

Reverse
  Power
  (W CW)

Connector

ZSGL54-70-18S

54-70

1.1

18

1.30

20

10

SMA

ZSGL60-65-20D

60-65

1.0

20

1.25

100

10

Tab

ZSGL85-112-18N

85-112

0.8

18

1.30

20

10

N

ZSGL100-140-18D

100-140

1.5

18

1.30

10

10

Tab

ZSGL120-180-18D

0.12-0.18

0.8

18

1.30

50

10

Tab

ZSGL438-458-25N

438-458

0.3

25

1.15

20

10

N

ZSGL870-980-22S

870-980

0.3

22

1.15

10

10

SMA

ZSGL950-1220-20D

950-1220

0.4

20

1.20

100

20

Tab

ZSGL925-960-25S

925-960

0.3

25

1.20

10

5

SMA

ZSGL1710-2700-17N

1710-2700

0.6

17

1.35

200

100

N

ZSGL2200-2700-20D

2200-2700

0.50

20

1.25

10

5

Tab

ZSGL2000-4000-18S

2000-4000

0.6

18

1.35

10

5

SMA

ZSGL4000-8000-18S

4000-8000

0.6

18

1.35

5

1

SMA

ZSGL5872-20D

5800-7200

0.4

20

1.20

10

2

Tab

ZSGL60100-18S

6000-10000

0.6

18

1.40

5

1

SMA

ZSGL80120-20D

8000-12000

0.5

18

1.30

10

2

Tab

ZSGL173181-20S

17300-18100

0.7

18

1.35

2

1

SMA

ZSGL265400-12K

26500-40000

1.7

12

1.8

10

1

2.92mm
