Suspended Substrate Stripline Filter

Zysen offers Suspended Substrate Stripline Filter, Ultra Broadband, from 1GHz to 40GHz, Connector SMA, N, 2 92mm are avaliable. Customized frequency and optimized specifications available. Contact us with your requirement.

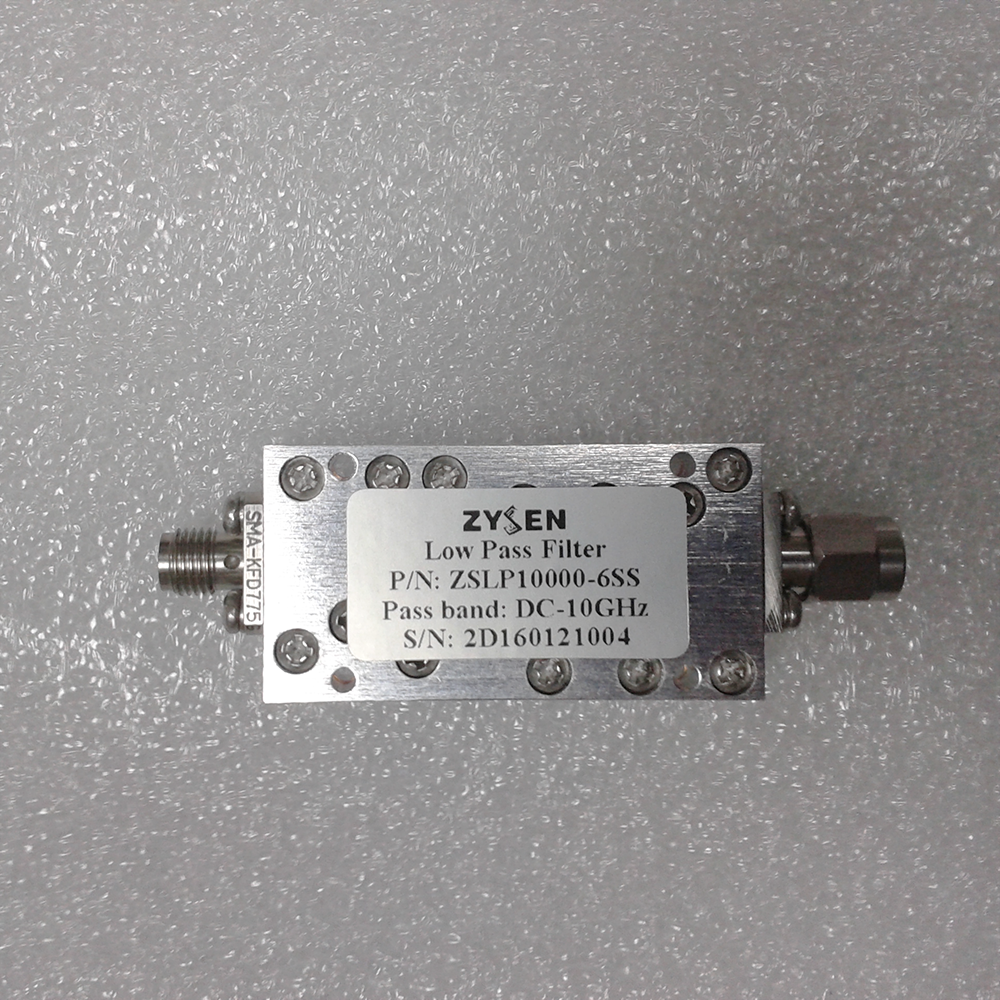

Suspended Substrate Stripline Low Pass Filter

P/N

Pass Band
  (GHz)

I.L.
  (dB)
  max

Stop Band
  (dB min @ GHz)

Average Power
  (W)

VSWR
  max

Connector

Size

ZSLP1000-S

DC-1.0

1.5

70 @ 1.3-4.2

15

1.3

SMA-F

82x27x10

ZSLP1500-S

DC-1.5

1.5

60 @ 1.8-5.3

15

1.3

SMA-F

69x26x10

ZSLP3000-S

DC-3.0

1.5

60 @ 3.52-10

15

1.3

SMA-F

44x24x10

ZSLP5000-S

DC-5.0

1.5

60 @ 5.58-15

15

1.3

SMA-F

31x22x10

ZSLP6000-S

DC-6.0

1.5

60 @ 6.7-15.5

15

1.3

SMA-F

35x24x10

ZSLP8000-S

DC-8.0

1.5

50 @ 8.8-16.2

15

1.4

SMA-F

30x22x10

ZSLP10000-S

DC-10.0

1.5

50 @ 10.9-18.5

15

1.4

SMA-F

28x21x10

ZSLP12000-S

DC-12.0

1.5

50 @ 13.1-20

15

1.5

SMA-F

24x19x10

ZSLP13000-S

DC-13.0

2.0

50 @ 14.1-21

15

1.5

SMA-F

22x18x10

ZSLP15500-S

DC-15.5

2.5

50 @ 16.5-22.5

15

1.5

SMA-F

21x17x10

ZSLP16000-S

DC-16.0

1.0 @ DC~15.5

2.5 @ 15.5-16

50 @ 17-22.8

15

1.5

SMA-F

21x17x10

ZSLP18000-S

DC-18.0

1.0 @ DC~17.3

3.0 @ 17.3-18

50 @ 19.1-26

15

1.6

SMA-F

18x17x10

ZSLP20000-S

DC-20

1.0 @ DC~19.0

3.0 @ 19.0-20.0

50 @ 21.2-27

15

1.6

SMA-F

17x17x10

ZSLP21000-S

DC-21

1.0 @ DC~20.0

3.0 @ 20.0-21.0

50 @ 22.2-27

15

1.6

SMA-F

17x17x10

ZSLP30000-S

DC-30

2.0

50 @ 36-40

15

2.0

2.92mm-F

32x20x12


Suspended Substrate Stripline High Pass Filter

P/N

Pass Band
  (GHz)

I.L.
  (dB)
  max

Stop Band
  (dB min @ GHz)

Average Power
  (W)

VSWR
  max

Connector

Size

ZSHP-10100-S

1-10

1.5

60 @ D5-0.78

15

1.5

SMA-F

61x23x10

ZSHP-15130-S

1.5-13

1.2

50 @ DC-1.0

15

1.8

SMA-F

53x20x10

ZSHP-20190-S

2-19

1.5

50 @ DC-1.58

15

1.5

SMA-F

37x18x10

ZSHP-30180-S

3-18

1.5

65 @ DC-2.0

15

1.8

SMA-F

31x17x10

ZSHP-40230-S

4-23

1.5 @ 4.0-4.15G

1.0 @ 4.15-23G

50 @ DC-3.2

15

1.8

SMA-F

25x16x10

ZSHP-50250-S

5-25

1.5 @ 5.0-5.2G

1.0 @ 5.2-25G

50 @ DC-4.0

15

1.8

SMA-F

23x16x10

ZSHP-80280-S

8-28

1.5 @ 8.0-8.3G

1.0 @ 8.3-28G

50 @ DC-6.65

15

1.8

SMA-F

19x15x10

ZSHP-180400-S

18-40

2.0 @ 18-19.5G

1.8 @ 19.5-40G

50 @ DC-15.0

15

1.8

2.92mm-F

12.7x12.7x10

ZSHP-80400-S

8-40

1.2

50 @ DC-5.0

15

2.0

2.92mm-F

30x22x10
